Four outputs, one platform
From a 400 Ws fill head to a 1000 Ws key, every DX shares the same LCD panel and wireless system.
DX-400
400 Ws, GN 90 and 0.05–0.6 s recycling — the agile head for portrait rooms and product tables.
- Output400 Ws
- Guide numberGN 90
- Recycling0.05–0.6 s
DX-1000
1000 Ws and GN 160 for big sets, deep stops and fast shot-to-shot cycles.
- Output1000 Ws
- Guide numberGN 160
- Recycling0.05–1.1 s
Set power in 40 steps

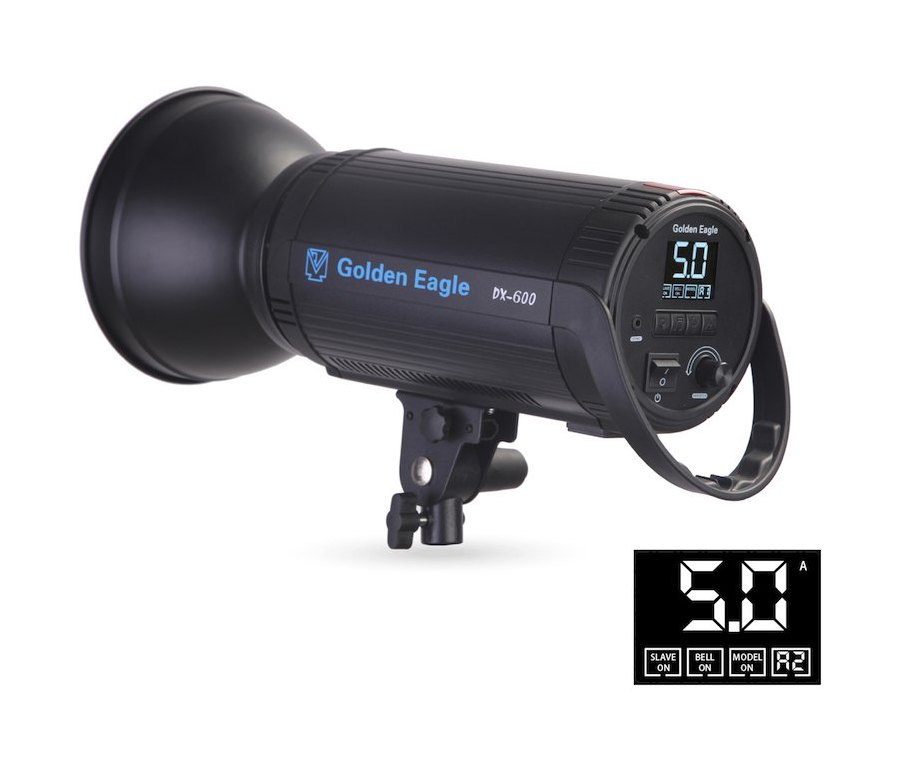

The LCD panel reads 1.0 to 5.0 and walks power across 40 steps, with SLAVE, buzzer and model-lamp modes on dedicated keys. A built-in 2.4G receiver groups heads 16 ways and pairs with the JY-K3 trigger for remote control from the camera.
Custom capacitors, fast cycles
Purpose-built capacitors give DX-400 a 0.6 s full-power recycle and keep every model between 1/900 and 1/2700 s flash duration — fast enough to freeze motion and hold high-volume shooting without waiting on the ready lamp.
Built for the Bowens ecosystem

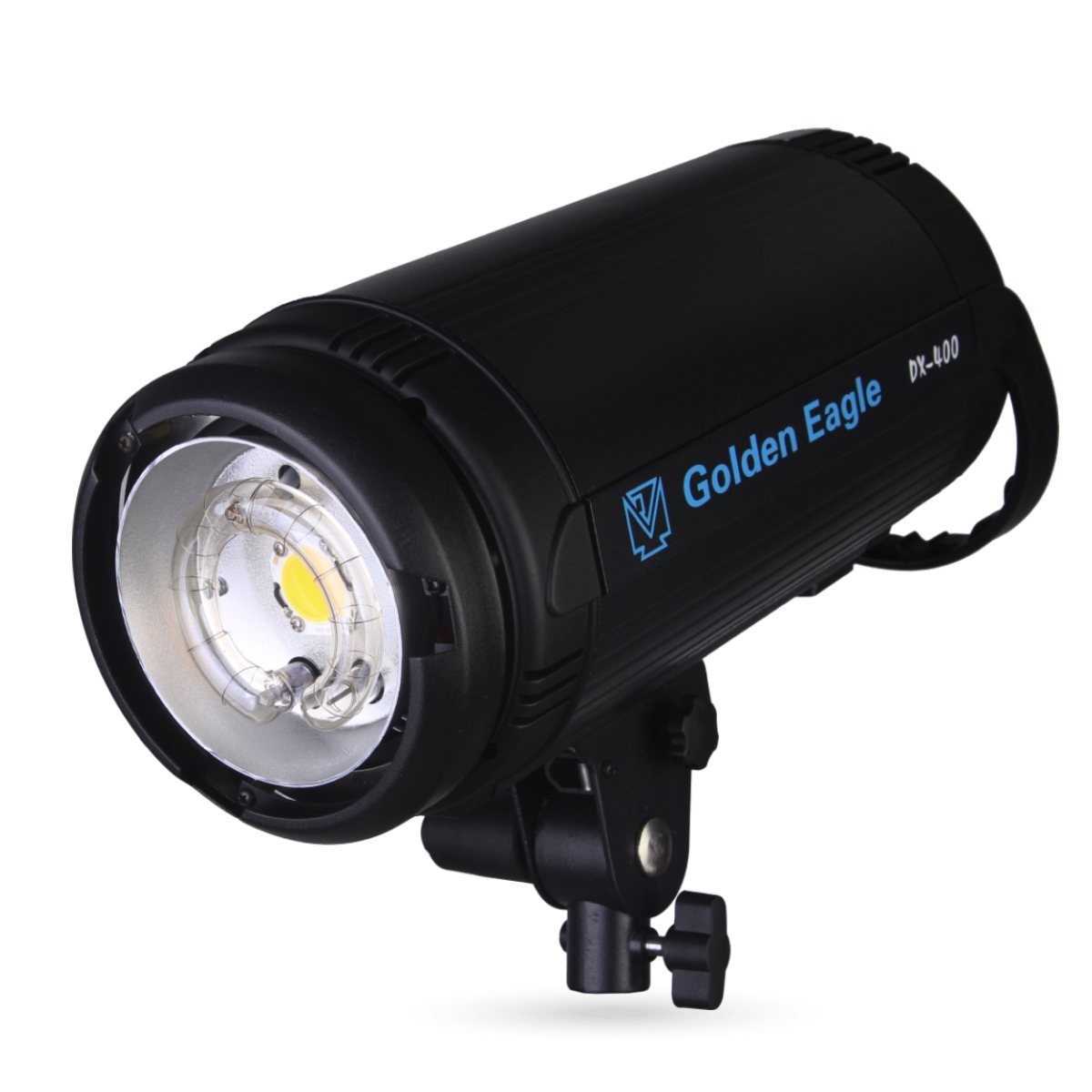

Standard Bowens mount and umbrella slot — pair the flash range with the full Golden Eagle light-shaper range.
| Specification | DX-400 | DX-600 | DX-800 | DX-1000 |
|---|---|---|---|---|
| Flash power | 400 Ws | 600 Ws | 800 Ws | 1000 Ws |
| Guide number (ISO 100, 1 m) | GN 90 | GN 120 | GN 140 | GN 160 |
| Modelling lamp | 25 W LED | 25 W LED | 25 W LED | 25 W LED |
| Recycling time | 0.05–0.6 s | 0.05–0.7 s | 0.05–1 s | 0.05–1.1 s |
| Flash duration | 1/900–1/2700 s | 1/900–1/2700 s | 1/900–1/2700 s | 1/900–1/2700 s |
| Built-in receiver | 2.4G, 16 groups | 2.4G, 16 groups | 2.4G, 16 groups | 2.4G, 16 groups |
| Power control | LCD 1.0–5.0, 40 steps | LCD 1.0–5.0, 40 steps | LCD 1.0–5.0, 40 steps | LCD 1.0–5.0, 40 steps |
| Mount | Bowens | Bowens | Bowens | Bowens |
| Housing | Aluminium | Aluminium | Aluminium | Aluminium |
Download manual (PDF)DX 400–1000 · free download
